Rebuild List: Engine List Crankcase Side
-

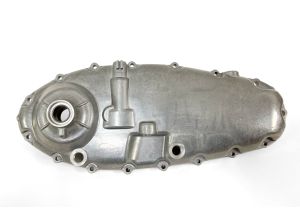

Lambretta Crankcase side (cover) Gp, UNIMBL0160£128.40 £107.00Uni side casing cover to suit GP models. These can be altered by us to work with a Li/Sx type engine if required. We can bead blast and or ultra sonic clean these ready for a reb... Learn MoreYou'll need: 1 of these
-
Lambretta Engine Dowel, gearbox/crankcase side, MBMBL0132£2.17 £1.81These standard 7mm dowels fit in your engine case and are used to locate the crankcase side and the gearbox end plate. Two per end plate. Two per crankcase side.... Learn MoreYou'll need: 2 of these
-
Gasket, Lambretta crankcase side, 0.8mm, standard thickness, MBMBP0181£4.69 £3.91This is a top quality reuseable - standard thickness 0.8mm crankcase side gasket. Fit all Series 1, 2 or 3 crankcase sides (except TV Series 1) Another MB made product.... Learn MoreYou'll need: 1 of these
-
Gasket, Lambretta crankcase side, 1.2mm, thicker type, MBMBP0485£5.80 £4.83This is a quality reuseable - upgraded thicker 1.2mm crankcase side gasket to fit all Series 1, 2 or 3 crankcase sides (except TV Series 1) Ideal if your side casing face is prone... Learn MoreYou'll need: 1 of these
-
Lambretta Crankcase side filler (breather) cap, stainless steel, Race-Tour MBMBP0082K£16.14 £13.45Our new MB Road - Race filler breather cap. Made from stainless steel, designed by Mark Broadhust. Comes with a length of fuel pipe long enough to push high above the tank out of... Learn MoreYou'll need: 1 of these
-
Gasket, Lambretta crankcase side fibre washer kit (set 3) MBMBP0190S£3.06 £2.55This is a set of 3 fibre washers for the crankcase side level, drain and filler plugs.... Learn MoreYou'll need: 1 of these
-
Lambretta Crankcase side level plug, stainless steel, MBMBP0064£8.70 £7.25We were disappointed with the quality of the level plugs available so we made them in stainless steel. Idea on their own or in our full kit. An excellent remade MB product.... Learn MoreYou'll need: 1 of these
-
Lambretta Crankcase side drain plug, stainless steel, MBMBP0069£8.12 £6.77We were disappointed with the quality of all the drain plugs available, so we made our own in stainless steel. It is fitted with a magnetic insert to gather the small metal part... Learn MoreYou'll need: 1 of these
-
Gasket, Lambretta crankcase side fibre washer, each, MBMBL0134£1.02 £0.85This fibre washer sits between the level, drain and filler plugs to provide a seal. You need 3 per crankcase side.... Learn MoreYou'll need: 3 of these
-
Lambretta Crankcase side drain, level and filler (breather) cap, includes fibre washers (set) stainless steel, MBMBP0084K£36.02 £30.02This popular MB product kit includes: Stainless steel level plug, MB Magnetic drain plug, MB Filler cap (with fuel pipe), MB Three fibre washers, MB TOP TIP: run the breat... Learn MoreYou'll need: 1 of these
-
Lambretta Crankcase side kickstart rubber bump stop, MBMBL0404£1.76 £1.47This small rubber fits into the crankcase side to stop the kick-start pedal when it springs back up. Specially made for MB, now with a taper to aid fitting.... Learn MoreYou'll need: 1 of these
-

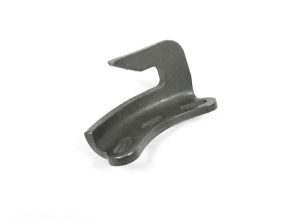

Lambretta Kickstart ramp, Li, LiS, Sx, Tv, S1/2/3MBL1693£20.41 £17.01Adjustable Lambretta Kickstart ramp. Fits all Series 1, 2, 3. Li, LiS, Sx, Tv, Open type.... Learn MoreYou'll need: 1 of these
-
Lambretta Engine kickstart seal, Race-Tour MBMBB0061£3.53 £2.94A high quality kick-start seal, fits all Series 1, 2 and 3 models.... Learn MoreYou'll need: 1 of these
-

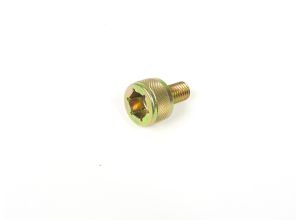

Lambretta Kickstart stop allen cap head screw, MBMBL0754£9.48 £7.90This special allen screw fits into the crankcase side and stops the kick-start shaft in its stop position so thing dont break. Made for MB Scooters in Yellow Zinc plating as per I... Learn MoreYou'll need: 1 of these
-
Lambretta Kickstart Bushes, Pair, Brass, MBMBP0632PR£8.06 £6.72This is a pair of MB remade kick-start bushes for crankcase sides. Fits all Series 1, 2 and 3. Made in Brass like Italian versions. 1 x small outer bush 1 x large inner bush ... Learn MoreYou'll need: 1 of these
-

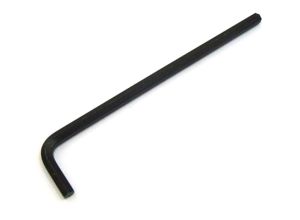

Tool, Allen key 12mm, Lambretta kickstart return screwMBL0704£4.00 £3.33This large 12mm allen key fits the kickstart return allen screw on most Lambrettas apart from the Indian version using a plastic sleeve which is 10mm.... Learn MoreYou'll need: 1 of these
-
Tool, Allen key 10mm, Lambretta crankcase side drain plugMBL0703£5.40 £4.50This 10mm allen key can be used for the crankcase side drain and level plugs amongst other things.... Learn MoreYou'll need: 1 of these
-
Lambretta Crankcase side fastener kit, allen cap head, for extended 6 plate, stainless steelMBP0218K£15.58 £12.98This is set of allen head screw and washers to secure your crankcase side. The screws are longer to allow the use of a 10mm thick crankcase side packing plate.... Learn MoreYou'll need: 1 of these
-
Lambretta Crankcase side, Stud kit (set) 14 x 6x37mm, 2 x 8x45mm, stainless steel, MBMBP0500K£13.73 £11.44This is a full set of stainless steel studs, made for MB Scooters Ltd 14 x 6mm crankcase side studs, MB 1 x 6mm tailpipe stud, MB (for clubman exhausts) 2 x 8mm exhaust studs,... Learn MoreYou'll need: 1 of these
-
Lambretta Crankcase side fastener kit, dome nuts, washers and studs, stainless steelMBP0234K£23.05 £19.21This is a full set of stainless steel studs, with nuts made for MB Scooters Ltd 14 x 6mm crankcase side studs, MB 1 x 6mm tailpipe stud, MB (for clubman exhausts) 14 x 6mm Dom... Learn MoreYou'll need: 1 of these
-
Lambretta Crankcase side fastener kit, studs and flange deep nuts, stainless steel, MBMBP0227K£33.06 £27.55This is a full set of stainless steel studs, with nuts made for MB Scooters Ltd 14 x 6mm crankcase side studs, MB 1 x 6mm tailpipe stud, MB (for clubman exhausts) 14 x 6mm MB ... Learn MoreYou'll need: 1 of these
-
Lambretta Crankcase side fastener kit, nyloc nut and washers, standard length studs, stainless steel, MBMBP0216K£17.41 £14.51This is a full set of stainless steel studs, with nyloc nuts and plain washers to secure your crankcase side. 14 x 6mm crankcase side studs, MB 1 x 6mm tailpipe stud, MB (for c... Learn MoreYou'll need: 1 of these
-
Lambretta Crankcase side fastener kit, allen cap head, stainless steelMBP0215K£15.19 £12.66This is set of stainless steel Allen head screws and washers to secure your crankcase side.... Learn MoreYou'll need: 1 of these
-
Stud 6x33mm - 6x6x21mm, Lambretta crankcase side and TS1 inlet manifold, engineers, stainless steel, MBMBFST6X33TS1£1.44 £1.20This stud can be used to secure the crankcase side but is also as used as an inlet stud on our TS1 manifolds. It is made from stainless steel. 6mm x 6 - 6 - 21mm... Learn MoreYou'll need: 1 of these
-
Stud 6x37mm - 16x10x11mm, Lambretta crankcase side, stainless steel, MBMBFST6X33SS£0.70 £0.58This stud is for the crankcase side, you need 14 for most crankcases. If youre using a Clubman then you use 13 and the longer tailpipe stud.We've redesigned these so the long end ... Learn MoreYou'll need: 14 of these
-
Stud 6x37mm - 12x13x15mm, Lambretta crankcase side tail pipe, stainless steel, MBMBFST6X37SS£0.78 £0.65This remade stainless steel stud is used to secure the crankcase side at the point below the kick-start when standard exhausts mount to the casing. 6mm x 12 - 13 - 12mm... Learn MoreYou'll need: 1 of these
-
Stud 6x42mm - 11x20x11mm, Lambretta crankcase side with external 6 plate clutch, stainless steel, MBMBFST6X42SS£1.33 £1.11This remade stainless steel stud is designed to be used to secure the crankcase side where a 10mm thick pack plate has been used. You would need 14 per engine casing. It can also ... Learn MoreYou'll need: 14 of these
-
Stud 8x45mm - 17x11x17mm, Lambretta crankcase side exhaust mount, stainless steel, MBMBFST8X45SS£1.07 £0.89This stud is used to hold the exhaust bracket to the main engine casing. You need two per engine casing. 8mm x 17 - 11 - 17mm... Learn MoreYou'll need: 2 of these
-
Lambretta Stepped stud, 6 to 7mm - 17x10x11mm, Lambretta crankcase side, stainless steel, MBMBP0394£2.84 £2.37A stainless steel stepped 7mm to 6mm oversized stud to repair a damaged crankcase side 6mm thread. If the thread has gone you could fit a Timesert or helicoil, these cost money, h... Learn MoreYou'll need: 1 of these
-
Lambretta Stepped stud, 6 to 7mm - 17x13x11mm, Lambretta crankcase side tailpipe, stainless steel, MBMBP0395£4.06 £3.38A stainless steel stepped 7mm to 6mm oversized stud to repair a damaged crankcase side tailpipe 6mm thread. If the thread has gone you could fit a Timesert or helicoil, these cost... Learn MoreYou'll need: 1 of these
-
Lambretta Stepped stud, 6 to 8mm - 17x10x11mm, Lambretta crankcase side, stainless steel, MBMBP0302£4.06 £3.38A really simple idea from Mark Broadhurst This Stainless Steel steppped stud can repair all the crankcase side 6mm threads that usually pulls outs. Most people dont have a He... Learn MoreYou'll need: 1 of these
-
Lambretta Stepped stud, 6 to 8mm - 17x13x11mm, Lambretta crankcase side tail pipe, stainless steel, MBMBP0278£2.84 £2.37A really simple idea from Mark Broadhurst This Stainless Steel steppped stud can repair the lower exhaust tailpipe thread that usually pulls outs. Most people dont have a Hei... Learn MoreYou'll need: 1 of these
-
Lambretta Stepped stud, 8 to 10mm - 20x11x17mm, Lambretta crankcase side swan-neck, stainless steel, MBMBP0392£1.90 £1.58A MB stepped oversized stud to repair a damaged crankcase side 8mm thread. If the thread has gone you could fit a Timesert or helicoil, but these cost more money, here is a simple... Learn MoreYou'll need: 1 of these
-
Lambretta Stepped stud, 8 to 12mm - 20x11x17mm, Lambretta crankcase side swan neck stainless steel, MBMBP0393£4.06 £3.38A super over sized stepped stud from 12mm to 8mm to repair a damaged crankcase side 8mm thread that has been over tapped out. If the thread has gone and is too big to fit a Timese... Learn MoreYou'll need: 1 of these
-
Screw hexagon set 6x16mm, stainless steelMBFH6X16£0.13 £0.11Amongst many applications this fastener can specifically be used to secure a standard Lambretta chain adjuster, kickstart ramp and a Lambretta pivot base.... Learn MoreYou'll need: 2 of these
-
Screw dome allen cap head 6x25mm, Lambretta stator, crankcase sides and wishbones, stainless steelMBFDAC6X25£0.19 £0.16Amongst many applications this fastener can specifically be used to secure your stator plate to the maghousing and casing. It can also be used on the gearbox wishbone.It can also ... Learn MoreYou'll need: 3 of these
-
Screw dome allen cap 6x25mm, Lambretta for stator and crankcase sides, high tensile, Zinc platedMBFDAC6X25ZC£0.19 £0.16Amongst many applications this fastener can specifically be used on all types of flywheels where clearance is tight.It can also be used on the gearbox wishbone, TS1 inlet manifolds... Learn MoreYou'll need: 1 of these
