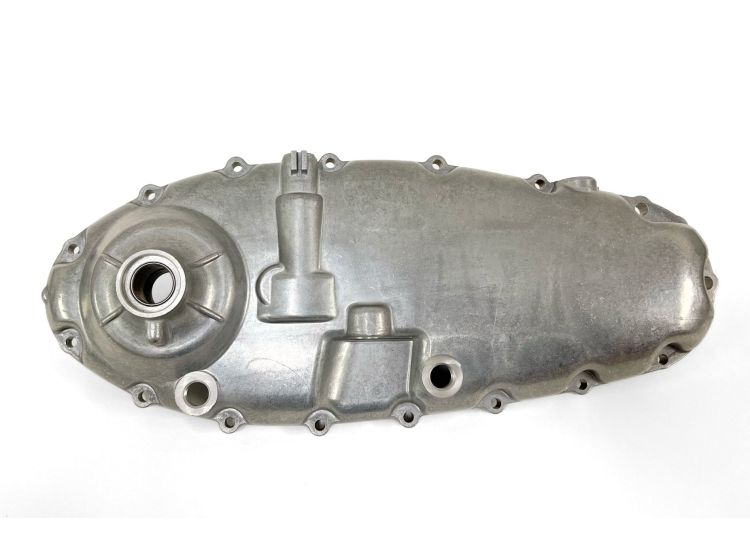

Lambretta Crankcase side (cover) Gp, UNI

Uni Auto from India have produced a new Gp crankcase side with quality a clear step up from the old SIL versions we used to rely on.

It’s modelled on a genuine Gp type crankcase side for use with the stronger Gp kickstart shaft and bronze pressure pad bush.

The inner and outer kickstart bushes are already installed.

All casings come pre-drilled and tapped to suit Tv, Sx, Li type kickstart ramps so can also fit engines when using the nipple style clutch pressure plate.

To build a Gp crankcase side for a Gp clutch, you need -

• Crankcase side, MBL0160
• Kickstart assembly, MBL1318K
• Clutch arm assembly, MBL1666K
• Clutch pressure pad bush, MBP0388
• Drain, level, filler kit, MBP0084K
• Kickstart return buffer, MBL0404
• Gasket, 0.8mm MBP0181 or 1.2mm MBP0485
• Oil, MBU0523

To build a Gp crankcase side for a Gp clutch with an AF easy clutch, you need -

• Crankcase side, MBL0160
• Gp Kickstart assembly, MBL1318K
• AF easy clutch assembly, MBL1723
• Drain, level, filler kit, MBP0084K
• Kickstart return buffer, MBL0404
• Gasket, 0.8mm MBP0181 or 1.2mm MBP0485
• Oil, MBU0523

To build a Gp crankcase side for a Tv, Sx, Li clutch, you need -

• Crankcase side, MBL0160
• Gp Kickstart assembly, MBL1318K
• Clutch arm assembly, MBL1666K
• Kickstart ramp, MBL1693, 3 screws MBFH6X16, 3 washers MBFWW6
• Drain, level, filler kit, MBP0084K
• Kickstart return buffer, MBL0404
• Gasket, 0.8mm MBP0181 or 1.2mm MBP0485
• Oil, MBU0523

To build a Gp crankcase side for a Tv, Sx, Li clutch to Gp clutch, you need -

• Crankcase side, MBL0160
• Gp Kickstart assembly, MBL1318K
• Clutch arm assembly, MBL1666K
• Gp Clutch pressure plate standard 4/5plate, MBL0074
• Kickstart ramp, MBL1693, 3 screws MBFH6X16, 3 washers MBFWW6
• Drain, level, filler kit, MBP0084K
• Kickstart return buffer, MBL0404
• Gasket, 0.8mm MBP0181 or 1.2mm MBP0485
• Oil, MBU0523

To build a Gp crankcase side for a Tv, Sx, Li with an AF easy clutch with a Gp clutch, you need -

• Crankcase side, MBL0160
• Gp Kickstart assembly, MBL1318K
• AF easy clutch assembly, MBL1723
• Gp Clutch pressure plate standard 4/5plate, MBL0074
• Kickstart ramp, MBL1693, 3 screws MBFH6X16, 3 washers MBFWW6
• Drain, level, filler kit, MBP0084K
• Kickstart return buffer, MBL0404
• Gasket, MBP0181 or MBP0485
• Oil, MBU0523

And we can assemble a crankcase side for you using MB supplied products - contact us for more info.
