Inlet manifold, Lambretta TS1, flange type (manifold only) Race-Tour MB
£25.12
£20.93
In stock
SKU
MRB0869K

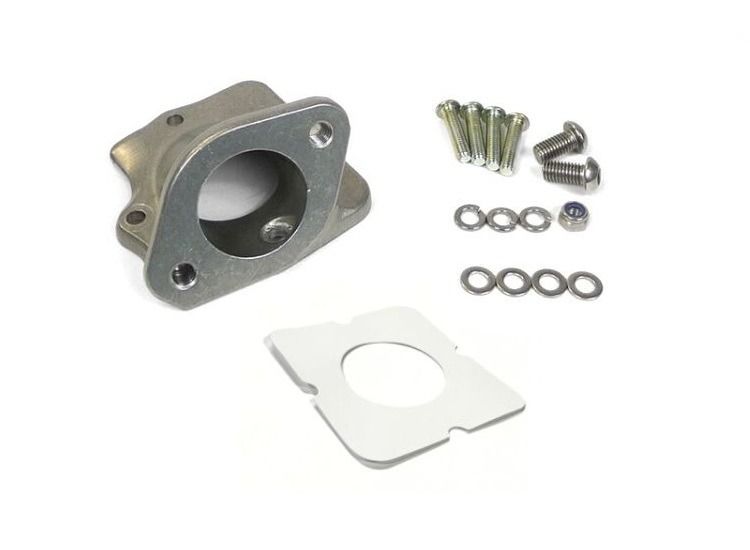

Inlet manifold TS1, ONLY with fasteners, MB flange type
New style inlet manifold from MB Scooters.
Uses a flange type rubber to increase panel clearance and facilitate the use of different types of carburettors.
The manifold has a slight recess on the reed block surface for improved frame clearance.
Kit comprises;
- Inlet manifold
- Inlet gasket
- All fasteners
Advantages are;
- Lifts the carb giving greater panel clearance and aids fitting a air filter
- Lifting the carb gives greater cable clearance on gears/clutch/rear brake
- Lifting the carb means better fuel pipe clearance
- Easier to get to air and idle screws
TOP TIP: Use gasket sealer of faces and under the 6mm allen bolt head to prevent air leaks
TIP - Silicone seal the rubber and gaskets in place
WARNING - these fit perfect with standard tanks, they may not fit with aftermarket tanks
| Brand | MB Racetour |
|---|
Write Your Own Review
- The manifold is made with a round hole to suit directly into V Force reed bloocks which give the best power
- We have reed stuffers for Genuine Yamaha and Bgm reed assemblys so they fit perfect into the round hole
- If using a square hole reed assembly they can easily be modified to suit but should flow quicker with out the mods
- The recess design means you should not need off set cones in the frame to give frame - manifold clearance

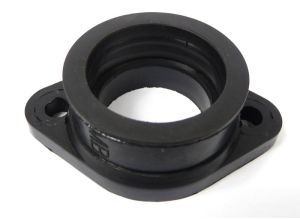

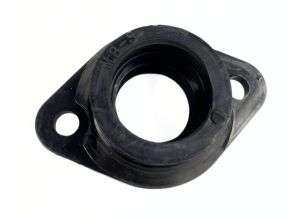

- We offer 3 carb rubbers 1) PHBL 22-25mm has a step inside the manifold 2) PHBH 26-30mm has astep inside the manifold 3) Mikuni 35mm fits flush to the manifold
