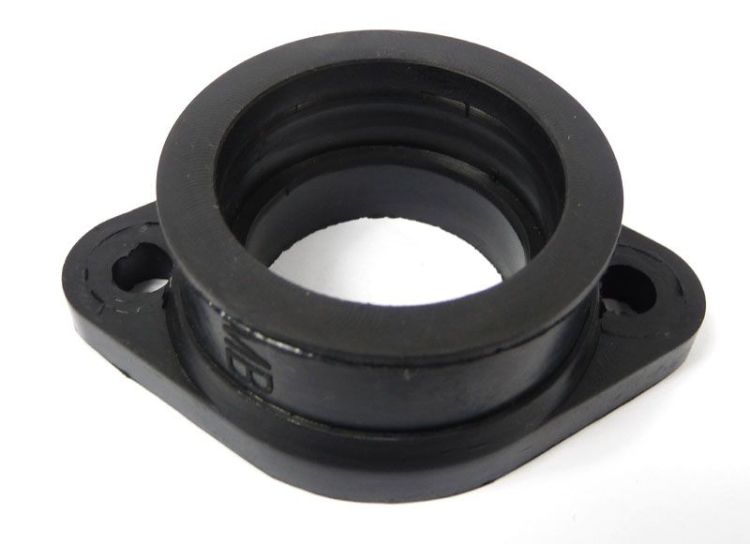

Carb Inlet mounting rubber, flange type, Mikuni TMX 35mm, Amal 28-35mm, Race-Tour MB
This is a Mark Broadhurst redesigned, improved and strengthened flange type carb mounting rubber.
Suits all Mikuni 32 - 35mm and Amal 28 - 34mm carbs, and any other carb with similar dimensions but not VHSB Dellorto.
If using this rubber for the Mikuni 35mm we always suggest using MRB0854 spacer ring which pushes in the rubber before the carb so when the clip is tightened is doesnt push the carb off or split the rubber, as the carb spiggot is shorter on the TMX.
You will need this size clip: MBFJC32*50ZC
- Comes marked with MB
- Fits 40mm (38 - 42mm) spigot outside diameter with one single lip
- Rubber measures 26mm in length
- Bolt hole spacing is 60mm
- Fits new type MB TS1 reed manifold
- Fits MB shorty Reed manifold
- Fits LTH, ScootRS reed manifolds and any engine with the same spacings
- Fits new BGM RT manifold
TIP; Always fit a carb dry, if youre jetting in the bike and constantly removing the carb - wipe clean and dry the rubber and the carb. Always use wide jubilee clips! Tighten just so the carb doesnt move side to side by hand to prevent rubbers splitting. Always carry a spare and use a MB carb. Always use fuel resistant sealer on the rubber.
| Brand | MB Racetour |
|---|
