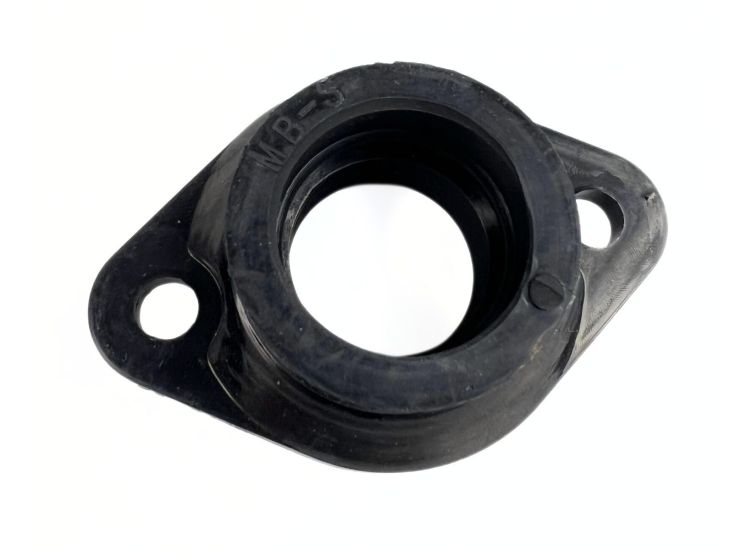

Carb Inlet mounting rubber, flange type, Dellorto PHBL, Race-Tour MB

This is a Mark Broadhurst redesigned, improved and strengthened flange type carb mounting rubber.

Suits all Dellorto 22 - 26mm PHBL and Mikuni 24mm TMX carbs or any other carb with similar spigot size.

You will need this clip: MBFJC25*40ZC


• Comes marked with MB
• Fits 30mm (29 - 31mm) spigot outside diameter with one single lip
• Rubber measures 26mm in length
• Comes with internal lip fitting to suit some manifolds, this can easily be removed with a sharpe knife
• Bolt hole spacing is 60mm
• Fits new type MB TS1 reed manifold
• Fits MB shorty Reed manifold
• Fits LTH, ScootRS reed manifolds and any engine with the same spacings
• Fits new BGM R/T manifold


TIP; Always fit a carb dry, if youre jetting in the bike and constantly removing the carb - wipe clean and dry the rubber and the carb. Always use wide jubilee clips! Tighten just so the carb doesnt move side to side by hand to prevent rubbers splitting. Always carry a spare and use a MB carb support. Always use fuel resistant sealer on the rubber.
