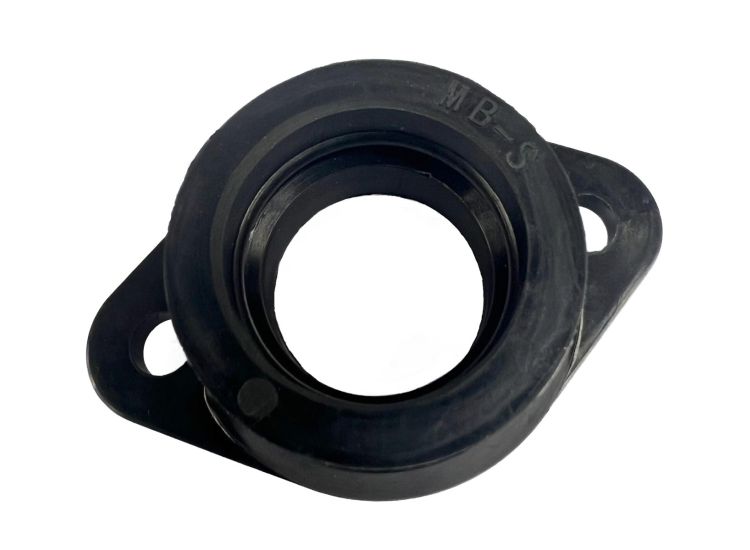

Carb Inlet mounting rubber, flange type, Dellorto PHBH, Race-Tour MB

This is a Mark Broadhurst redesigned, improved and strengthened flange type carb mounting rubber.

Suits:

• Dellorto PHBH carbs 26, 28, 30mm
• Dellorto VHSH 30mm
• Dellorto VHST 24-26
• Mikuni TMX 27-30mm
• Mikuni TM28
• PWK 28mm
• Polini 24-30

and any other carb with similar dimensions.

60mm between hole centers.


• Comes marked with MB
• Fits 36mm spigot outside diameter with one single lip
• Rubber measures 26mm in length
• Bolt hole spacing is 60mm
• Fits new type MB TS1 reed manifold
• Fits MB shorty Reed manifold
• Fits LTH, ScootRS reed manifolds and any engine with the same spacings
• Fits new BGM RT manifold


TIP; Always fit a carb dry, if youre jetting in the bike and constantly removing the carb - wipe clean and dry the rubber and the carb. Always use wide jubilee clips! Tighten just so the carb doesnt move side to side by hand to prevent rubbers slitting. Always carry a spare and if you can bond some rubber onto the cowling to support the carb.

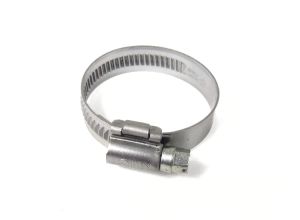

You will need this clip MBFJC30*45ZC

If you are using a smooth ring you will need the slightly bigger Jubilee clip
