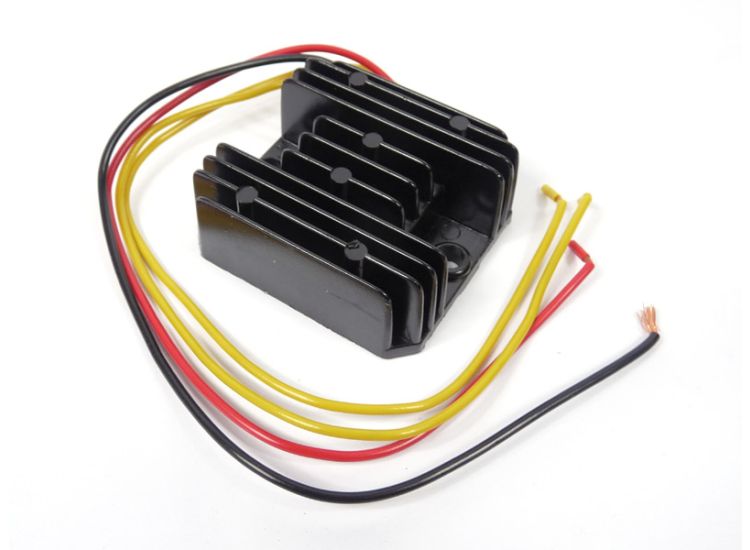

Lambretta Electronic Ignition rectifier, DC (Wassell/Podtronics/bgm/Scootronics)

If your wanting a full DC ignition set up and want full DC 12 volt lighting this is the Rectifier (regulator) that you need.

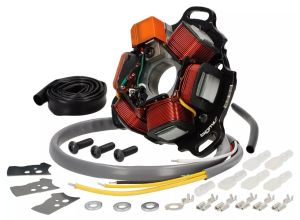

You can either modify your own AC Electronic stator or use one of our bgm already converted DC stators.

Simple fit 4 wires

• 2 Yellows from stator go to 2 Yellows on the rectifier (on the bgm DC stator one is a Yellow/Red tracer wire) these can go either way round
• Black is an Earth, Earth to rectifier body on frame

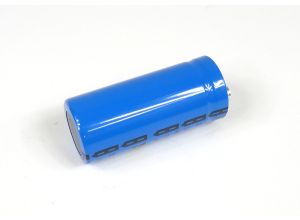

• Red is power into the loom for 12 Volt DC feed to the battery or capacitor (or without but lights will be dimmer at low speeds)
