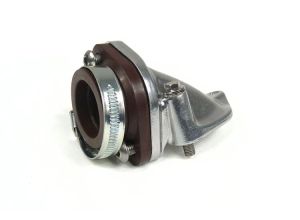

Inlet manifold, Lambretta large block, rubber mounted with flange type rubber, Dellorto PHBH, PWK 24-30mm, bgm rubber, Race-Tour MB
MB flange type large block Race-Tour inlet manifold with bgm flange rubber.
Suits Dellorto PHBH carbs 26, 28 and 30mm. Also fits PWK type carbs.
Perfect for MBgm Race-Tour 195/200 - 225/230 cylinder kits.
Fits all large block 200cc inlet stud spacings.
Advantages
- fits with all types of cowlings
- fits with petrol tap rod
- Flange rubber locates inside the inlet manifold
Designed by Mark Broadhurst to give the best clearance from engine to side panels.

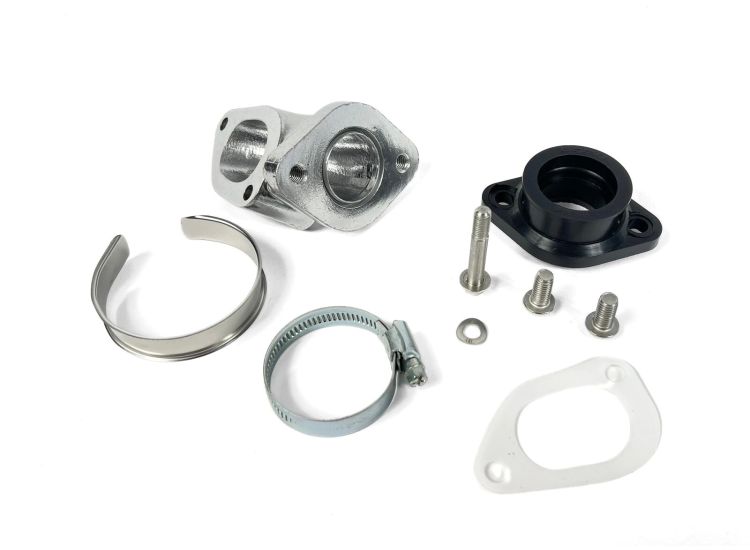

Kit comes complete with
- Die cast polished inlet manifold, MB
- Flange mounting rubber, 26 - 30mm, bgm
- Stainless steel fasteners, MB
- Stainless steel jubilee clip
- Inlet gaset
- Stainless steel jubilee smooth ring
TIP: For safety use gasket sealer on all joints, retighten the fasteners after some miles.
TIP; Always fit a carb dry, if youre jetting in the bike and constantly removing the carb - wipe clean and dry the rubber and the carb. Always use wide jubilee clips! Tighten just so the carb doesnt move side to side by hand to prevent rubbers splitting. Always carry a spare and use a MB carb support.
