will this manifold fit a Mugello 198 kit, I will be using a 30mm PHBH carb..

It depends on which Mugello it is, check the manifold studs first before ordering as they are made with small and large block stud spacings

Mark, why is this manifold unsuitable for the RT kit? Currently working on a mates RT with the shorty manifold but with the carb vertical the brass nut/main jet is rubbing on the head cowling.

The RT kits use large block stud patterns on the inlet, this is a small block so does not fit

Hi Mark, I have one of these on my 198 mugello. I have ordered the stepped carb inlet rubber as the previous rubber kept slipping off. Would it help if the manifold was not so smooth and shiny? Surely a rougher surface finish would help the rubber yo stay out. Should I abrade the manifold with some sandpaper prior to fitting the new rubber,?

Yes better if not polished for grip, always wipe clean the manifold and rubber and if you want use a fine smear of loctite

Hi Mark, I have just fitted the small block inlet manifold - MRB0059K However, when fitted the 28mm Dellorto seems to be at quite an angle. Is the small block inlet manifold MRB0051K at a right angle? And would the carb operate better with this, or does it not make any difference.

The manifold is correct and its supposed to be a down draft, it will work fine

Skip to the end of the images gallery

Skip to the beginning of the images gallery

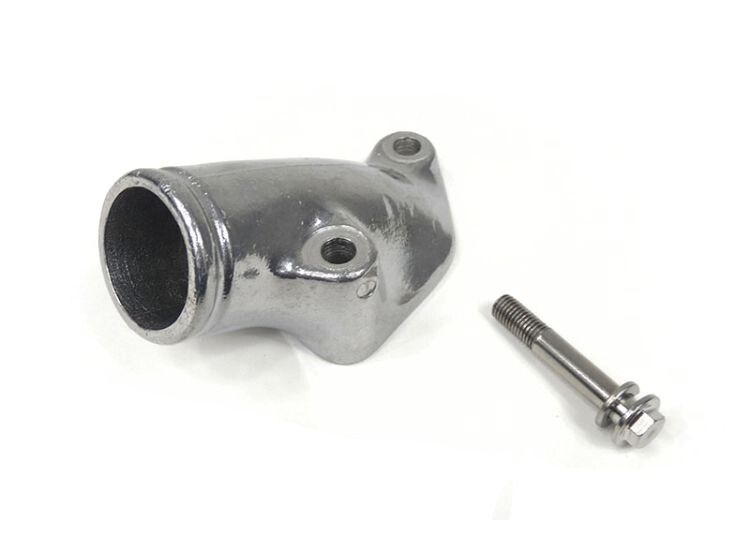

Inlet manifold, Lambretta small block, rubber mounted, Dellorto PHBH, PWK 24-30mm, Race-Tour MB

Be the first to review this product

£22.73 £18.94

Out of stock

SKU

MRB0059K

Inlet manifold 30/150 Dellorto (rubber mounted PHBH, PWK) 24, 26, 27, 28, 30mm

Details

More Information

Questions (8)

Reviews

Reasons to Buy

Development History

Tips

This manifold is for fitting a rubber mounted 28 or 30mm PHBH type carburettor to a 125/150/175/185cc cast/alloy type cylinders (not RT 195)

It comes with a special MB long stainless steel bolt to replace the long inlet stud otherwise it is very hard to fit the manifold without dropping the engine.

Fits all 125/150/175/185cc cylinders a proven product and design from MB.

If you would wish to use this on a 125/ 150/ 175/ 190 etc and use either a Mikuni TMX 35 or VHSH 30-32 or Amal 28-32mm then use stepped rubber MBP0327 for this to fit and work.

More Information
Brand	MB Racetour

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Tried and tested.
Easy to fit.
Fits many carb applications.
As used by most dealers around the world for over 20 years.

Mark Broadhurst has designed and manufactured more inlet manifolds to suit Lambretta scooters than anyone else.
Developed over time to suit various carburettors used on Lambrettas for different applications.
Designed to clear all frame, engine and body parts.
Reshaped to clear panels.

Either use an inlet gasket or Silicone sealer to seal the manifold.
Match the inlet manifold to inlet port and inlet port to inlet manifold for better results.
Tighten inlet screws together
On some cylinders the manifold my need filing to clear some fins above the inlet port
Cowling may need modifying to clear the manifold
