I have a question about "Carb inlet manifold for 30mm Dellortos, 200 - 250, MRB" Is it compliant with the Dellorto VHST 28 (36mm engine)? Can you provide the gasket and connecting rubber for this inlet manifold? What do you think about this setup carb for a 200cc stage 4 with clubman exhaust? Best regards Fabio fabio.farrauto@edpnet.be

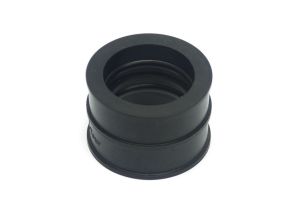

If the spigot on the back of the carb is 36mm then this manifold will fit. We can provide the rubber mount and the gasket, they have been added to the related products for this manifold. The carb should work OK but we haven't used the VHST yet so cannot provide any help with jetting.

I have a question about "Carb inlet manifold for 30mm Dellortos, 200 - 250, MRB" Is this the one that kicks the carrb to the left, when viewed, to miss the long range tank? Regards Mitch

This manifold comes out on the standard left hand side, if the petrol tank is any good it will clear.

I have a question about "Carb inlet manifold for 30mm Dellortos, 200 - 250, MRB" I have a whole cute in my side pannel that matches a standard carb setup, will this manifold change the position of the carb.

To be honest without trying it I am not sure.

Hi mark! I want to use this manifold for a 200 barrel, this one works also wit a 26 PHBH dellorto's carb?

Yes this is the same rubber mounting

hello, I can mount a remote filter without cutting the panel? i have rapido race 225 phbh 30

Hi yes should be fine but some frame are different. One fits one is tight, you could look at our flat panel filter if its a tight fit

Skip to the end of the images gallery

Skip to the beginning of the images gallery

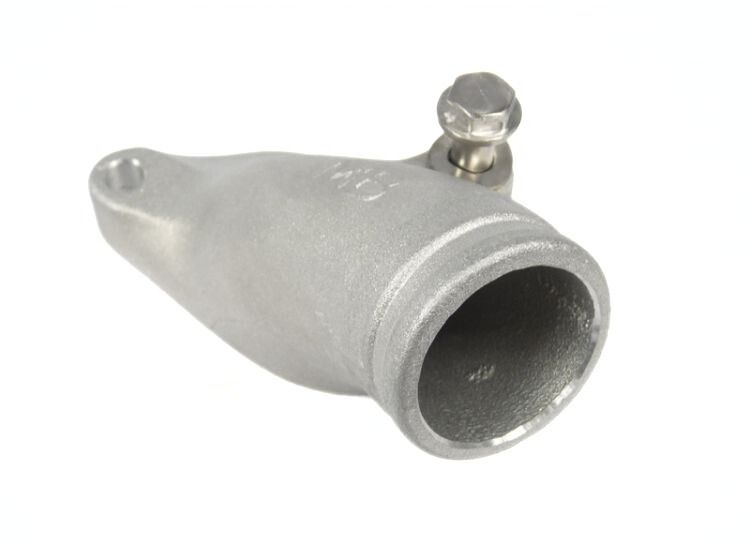

Inlet manifold, Lambretta large block, rubber mounted, Dellorto PHBH, PWK 24-30mm, for cutdowns and choppers, Race-Tour MB

Name: Inlet manifold, Lambretta large block, rubber mounted, Dellorto PHBH, PWK 24-30mm, for cutdowns and choppers, Race-Tour MB
SKU: MRB0058K
Price: 27.636001 GBP
Availability: InStock

4 Reviews Add Your Review

£27.64 £23.03

In stock

SKU

MRB0058K

Inlet manifold 30/200 Dellorto (rubber MOUNTED) PHBH Inlet (CUT DOWNS/chopper) MB

Details

More Information

Questions (5)

Reviews 4

Reasons to Buy

Development History

Tips

This has been one of our most popular inlet manifolds over the years.

It is for fitting a rubber mounted 28 or 30mm Dellorto PHBH, 28 or 30mm PWK type carburettors to a 200cc cast type oval port cylinder.

This is a retro version which points more to the front of the Scooter giving it a bit of a ram air effect - ideal for cutdowns, choppers and with holes in the sidepanel.

It comes with a long stainless steel bolt to replace the long inlet stud, otherwise it is very hard to fit the manifold without dropping the engine.

More Information
Brand	MB Racetour

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Tried and tested.
Easy to fit.
Fits many carb applications.
As used by most dealers around the world for over 20+ years.

Mark Broadhurst has designed and manufactured more inlet manifolds to suit Lambretta scooters than anyone else.
Developed over time to suit various carburettors used on Lambrettas for different applications.
Designed to clear all frame, engine and body parts.
Reshaped to clear panels.

Either use an inlet gasket or Silicone sealer to seal the manifold.
Match the inlet manifold to inlet port and inlet port to inlet manifold for better results.
Tighten inlet screws together.
On early head cowls the scoop will need flattening to clear the carbs float bowl
