Dellorto Carburettor kit, Lambretta large block, Flange type inlet manifold, 25mm PHBL

A complete carburettor kit, contains everything from the inlet gasket through to the air filter.

Ideal as a replacement for old worn out standard carburettors or on a tuned scooter where you want to keep the standard air box to maintain your scooters standard looks.

Suits all large block 200/205/210/215/220/225/230/240 cylinders with the carb on the left side.

Designed to fit all full panelled scooters without cutting holes in your panels.

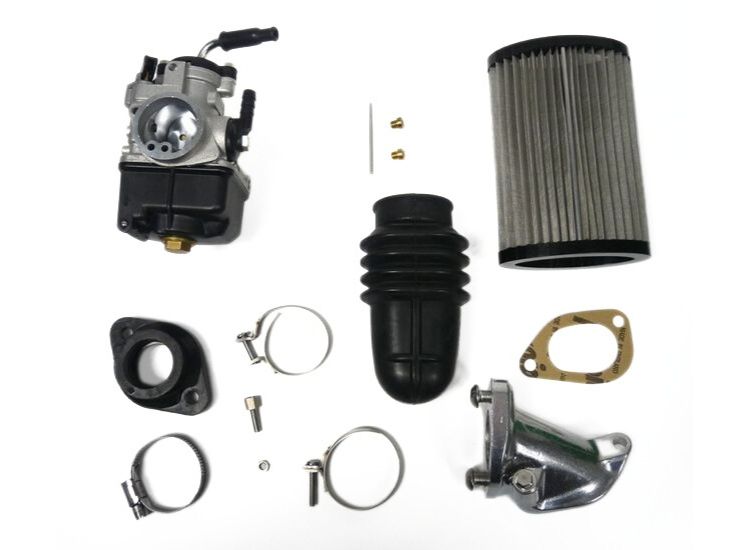

Comes with;

• 25mm PHBL Carb stripped and pre jetted
• Spare jets to fine tune the motor
• Cable choke assembly
• Air filter, high flow, MB
• Air hose Viton, MB
• Air bellows clips, stainless, MB
• MB Flange type Inlet manifold and special bolt
• MB Flange Viton carb rubber
• Carb rubber clip
• Inlet gasket, MB

NOTE; if using a Li type head cowl the air scoop will need shaping, or use a GP type head cowl or even better a MB Carbon head cowl. Fit the air bellows after heating up in boiling water so it re shapes to fit.

PLEASE READ THE SETTING UP INSTRUCTIONS AND CARB SETTING UP BEFORE YOU PHONE FOR ADVICE

Click here for Setting up instructions

Carb Comes with;

• Spare needles & Jets
• Cable choke assembly
• Large float valve
• 90 degree elbow, screw and adjuster nut

Jets fitted;

• 102 Main Jet - 98 & 95 Spare
• AQ 264 Atomiser
• D26 Needle, clip second slot from the top - D22 Spare
