Dellorto Carburettor kit, Lambretta small block, 25mm PHBL

A complete carburettor kit, contains everything from the inlet gasket through to the air filter.

Ideal as a replacement for old worn out standard carburettors or on a tuned scooter where you want to keep the standard air box to maintain your scooters standard looks.

Suits most 125/150/175/186/190/195/200 small block cylinders with the carb on the left side. This will not fit the RT 195. These use 200cc type stud spacing. You need to order MBD25K7

Designed to fit all full panelled scooters without cutting holes in your panels.

NOTE; if using an Li type head cowl, the air scoop will need shaping, or use a GP type head cowl or even better a MB Carbon head cowl. Fit the air bellows after heating up in boiling water so it re shapes to fit.

PLEASE READ THE SETTING UP INSTRUCTIONS AND CARB SETTING UP BEFORE YOU PHONE FOR ADVICE

Click here for Setting up instructions

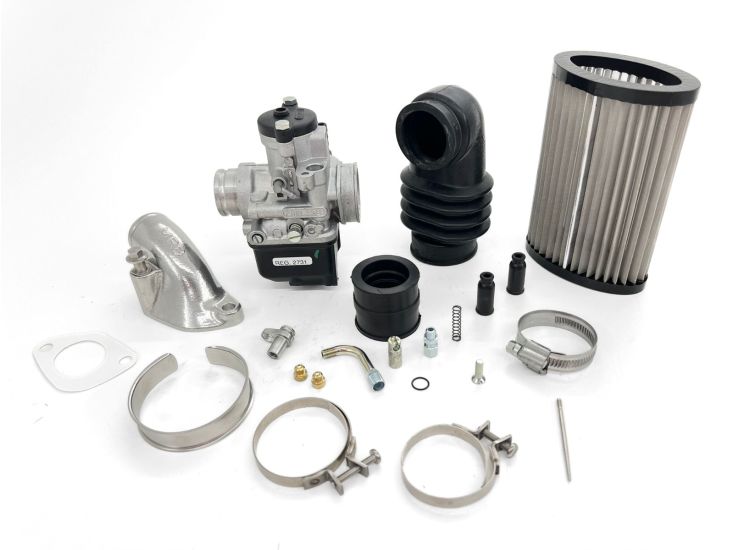

Carb Comes with;

• Spare needles & Jets
• Cable choke assembly
• Large float valve
• 90 degree elbow, screw and adjuster nut

Jets fitted;

• 102 Main Jet - 98 & 95 Spare
• AQ 264 Atomiser
• D26 Needle, clip second slot from the top - D22 Spare
