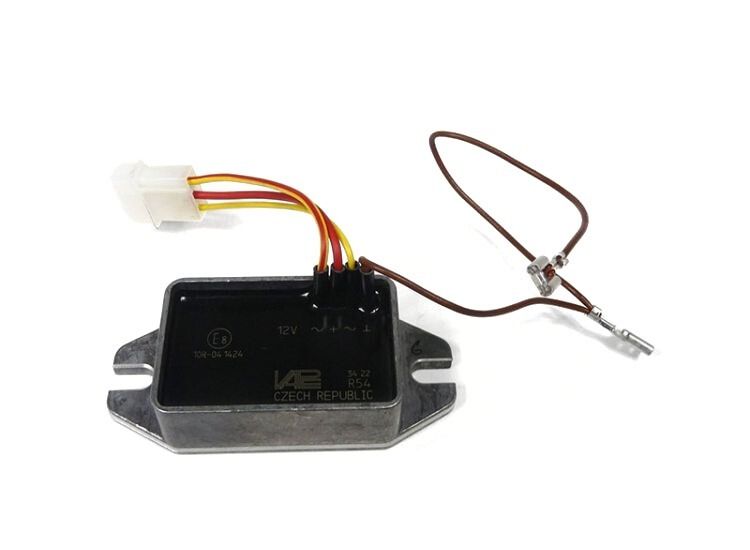

Lambretta Electronic Ignition regulator/rectifier AC with DC trickle charge, Vape

Vape Electronic ignition, AC Regulator.

This version comes with a DC Trickle charge.

Ideal for powering toys such as USB, Speedos, rev counters etc.

Wiring is;

• Brown - earth
• Yellow/Red - AC
• Red - DC output
• Yellow - AC

NOTE - FOR THIS TO WORK you need to bridge the Yellow, Yellow/Red with a wire ie connect the 2 wires together.

NOTE - the maximum battery to us is a 5 amp.

You can use this to have AC lights and DC feeds for accessories.

Wiring diagrams here
