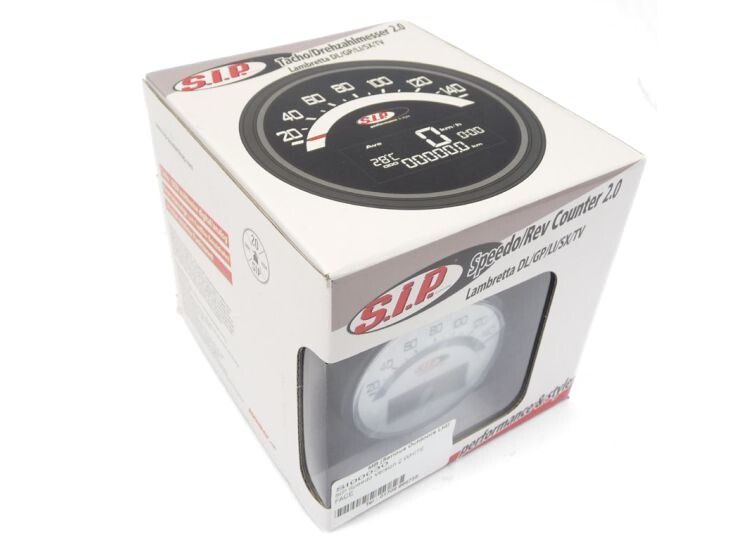

Lambretta Speedo, White face, S1/2, SIP
Rev Counter/Speedometer SIP V2.0 for Lambretta Li 125/150 S1,2, TV 175 1. 140 (km/h/mph) / 140000 rpm.
It can measure your speed with the conventional speedometer cable and drive assembly or alternatively with the electronic wheel revolution sensor kit (separate).
Data recorded is saved by an internal storage facility.
Works on 12V AC/DC and requires no battery.
Works with Vespatronic and Parmakit ignition systems.
To adjust and scroll through the functions on the electronic display a small button is included, which can be easily and inconspicuously located beneath the scooters existing light switch. A snazzy gimmick: During the ignition sequence the speedometer unit carries out a complete function check, similar to current high-tech GP racing machines.
A new feature of the 2.0 version is the choice between an analogue speedometer or rev counter. The speedometer needle can be used to display either speed or rpm. During longer trips you can also record the total time of your journey and the average speeds for both daily stages and the whole tour, which can be set up individually. The total number of kilometres travelled, recorded by your original speedometer unit, can also be transferred to the km value displayed. In combination with the SIP fast flow fuel tap, with fuel reserve sensor, all Vespa models can now benefit from a fuel level warning function. To indicate the ebbing level in your fuel tank 'FUEL' starts to blink on the electronic display. In addition, it also improves the voltage regulation of your complete electrical system.
The speed values on the analogue number-face of the SIP Speedometer/Rev-Counter designed for the Vespa smallframe models go up to 80. These speedometers are intended for use in Vespa V 50 / PK models that rarely reach higher speeds or engine revolutions. Now, at last, we can provide a high-tech alternative to the more basic reproduction speedometers that are otherwise currently available.
All of our speedometers are delivered including a voltage regulator, all necessary connections, a temperature sensor and full installation instructions.
Conclusion: The first high end cockpit instrument for classic Vespa models that successfully combines a speedometer and a rev counter with an almost completely original looking component. Whether you are a racer, rally goer, tourer or an urban cowboy - it offers advantages to all!
The functions of the SIP Rev counter/Speedometer:
• Analogue rev counter up to 12 or 14000 rpm, according to model.
• Maximum digitally displayed speed: 199 kph or 140 mph.
• Maximum temperature: 250°C or 32-482°F for cylinder head or cooling water temperature, a temperature sensor for the spark plug is also included in the delivery.
• Time. (except V50 Ø 48mm)
Along with optionally available functions:
• Maximum digitally displayed rpm : up to 14000 rpm
• Maximum total measurable distance travelled: 99999 km or miles.
• 'A' stage distance extended to 9999,9 km or miles.
• Maximum 'A' stage time 99,59 h.
• Maximum average 'A' stage speed 199 kph or 140 mph.
• with PX Lusso (EFL) models: Fuel level-, indicator-, high/low beam display
The SIP Rev counter/Speedometer 2.0 possess the following extra functions :
• As an alternative to an analogue rev counter, the speedometer needle can also display maximum speeds of up 140 kph/mph
• Maximum speed: 199 kph or 140 mph.
• Maximum rpm.
• Maximum temperature
• Maximum 'B' stage distance: 9999,9 kph/mph.
• Maximum 'B' stage journey time 99.59h.
• Maximum average 'B' stage speed 199 kph or 140 mph.
• Adjustable total journey distance. (except V50 Ø 48mm)
• Five back-light brightness settings. (except V50 Ø 48mm)
• Fuel reserve warning.
SIP-TIP: Do not forget to order a new speedometer drive gear and cable. Alternatively, if you prefer more accuracy, order the electronic wheel speed sensor (#KOBF640JO5) with magnet and holder.
