Inlet manifold, Lambretta TS1, with flange rubber, Dellorto VHSB, Race-Tour MB

New style inlet manifold from MB Scooters.

Uses a flange type rubber to increase panel clearance and facilitate the use of different types of carburettors.

The manifold has a slight recess on the reed block surface for improved frame clearance.

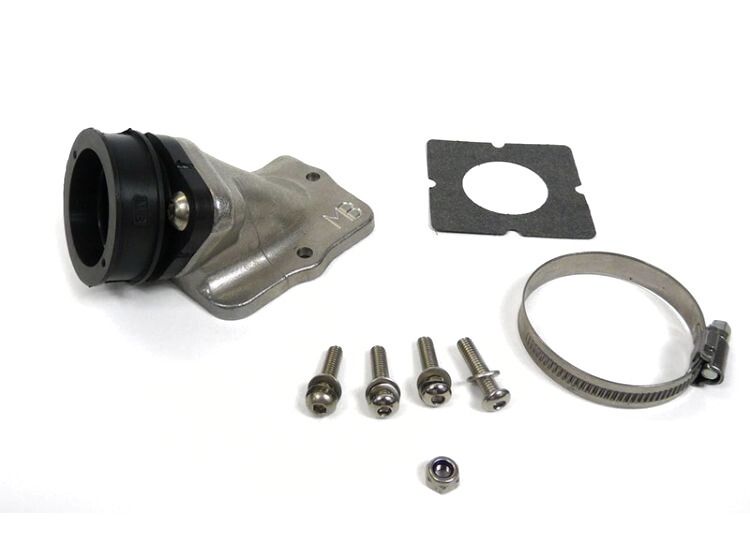

Kit comprises:-

• Inlet manifold, MB
• Flange type rubber to suit Dellorto VHSB carburettors, MB
• Jubilee clip
• Inlet gasket, MB
• All fasteneners

Advantages are;

• Lifts the carb giving greater panel clearance and aids fitting a air filter
• Lifting the carb gives greater cable clearance for gears/clutch/rear brake
• Lifting the carb means better fuel pipe clearance
• Easier to get to air and idle screws

TIP - Seal the gaskets and rubber and under the allen screw head to prevent air leaks

WARNING - these fit perfect with standard tanks but may not fit with aftermarket tanks! If the cylinder is shortened the carb may fowl the engine mounts

TIP; Always fit a carb dry, if youre jetting in the bike and constantly removing the carb - wipe clean and dry the rubber and the carb. Always use wide jubilee clips! Tighten just so the carb doesnt move side to side by hand to prevent rubbers slitting. Always carry a spare and if you can bond some rubber onto the cowling to support the carb.
