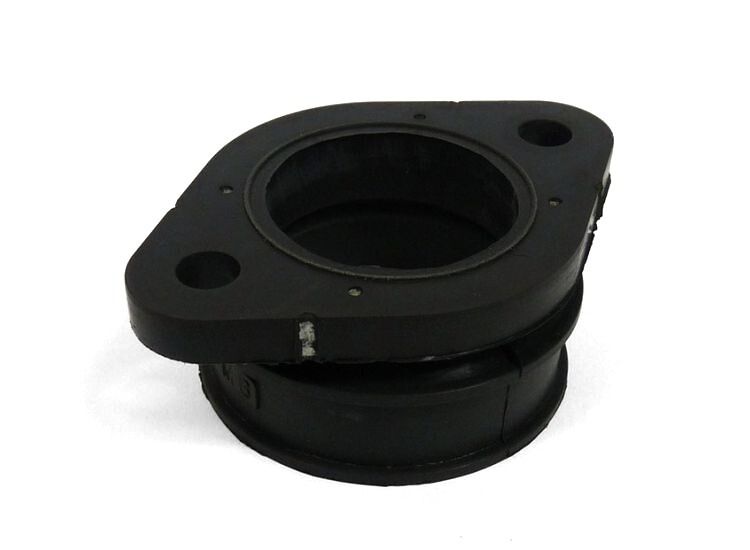

Carb Inlet mounting rubber, flange type, Dellorto VHSB 34-36mm, Race-Tour MB

This is a Mark Broadhurst redesigned, improved and strengthened flange type carb mounting rubber.

Suits all Dellorto 34 - 36mm VHSB carbs or any other carb with similar spigot size.

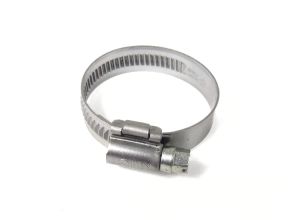

You will need this clip: MBFJC40*60ZC

• Comes marked with MB
• Fits 44mm spigot outside diameter with one single lip
• Rubber measures 29mm in length
• Bolt hole spacing is 60mm
• Fits new type MB TS1 reed manifold
• Fits MB shorty Reed manifold
• Fits LTH, ScootRS reed manifolds and any engine with the same spacings
• Fits new BGM R-T manifold


TIPS:

1. Make sure both inlet manifold and carb are clean and dry before fitting
2. Always use the wide type Jubilee clips
3. Do not over tighten the clips
4. Always carry a spare

TIP; Always fit a carb dry, if youre jetting in the bike and constantly removing the carb - wipe clean and dry the rubber and the carb. Always use wide jubilee clips! Tighten just so the carb doesnt move side to side by hand to prevent rubbers splitting. Always carry a spare and use a carb support. Always seal the rubber with fuel resistant sealer.
