Can it be used with the front cush drive still in place?

I think on the bigger sprockets, but I do it without

I have bought the chain sprocket alignment bracket, and i already had a MB dial gauge and bracket for timing, but i cannot see how they go together.Am i doing something wrong or is there an additional bracket required?

The dial gauge should just bolt on the adjustable bracket to set it up

I do not have the "smile dial" but I do have a Mitutoyo w/lug back. Lug does fit in slot. how does it bolt on for stability? do you have a photo of the smile dial affixed to the tool? Regards

Put a bolt through the slot then into the dial gauge then the slot is for adjustment

Is there instructions if not a video link I donâ€™t mind buying but need to learn thanks

There info in this article that Im trying to finish off, its mainly done https://www.mbscooters.co.uk/info/mb-*-tech-articles/engine-tech-*-clutch-x+85.html

Skip to the end of the images gallery

Skip to the beginning of the images gallery

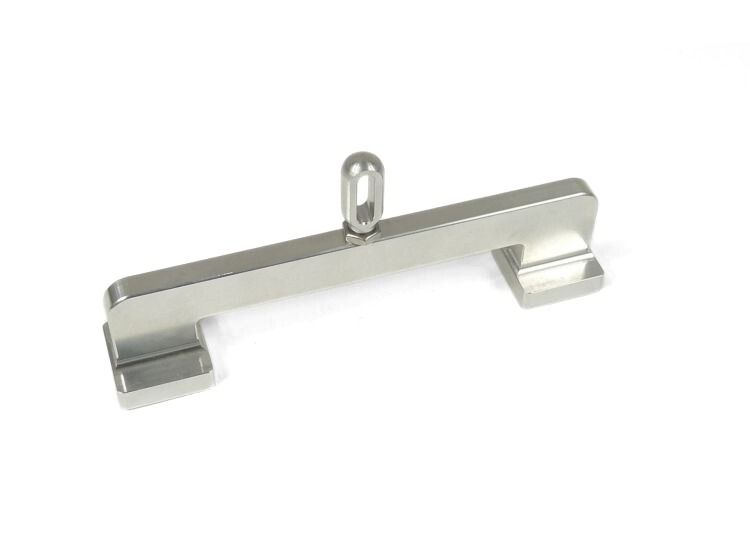

Lambretta Tool, Chain sprocket adjustment alignment bracket (dial gauge separate) MB

Rating:

100 % of 100

6 Reviews Add Your Review

£51.54 £42.95

Out of stock

SKU

MRB0812K

Tool Chain sprocket adjustment bracket, (dial gauge separate) (alignment) MB

Details

Questions (5)

Reviews 6

This is a new quality precision CNC workshop tool from MB.

This bridge bracket with the dial gauge fitted will tell you where you are when setting up your front sprocket to the rear sprocket.

This setting is very important to aid chain life.

Dial gauge is separate MBL1390
