Universal Rev counter, CHT and clock, MB

Specially made for MB Scooters - Lambretta/Vespa and universal rev counter and cylinder head temperature gauge with clock.

Large easy to rear digits with Green LED background.

Comes with wires the correct length to fit

• a Lambretta and Vespa using a legshield toolbox
• or any motor cycle, kart or any other vehicle

Gives these functions

• Rev counter
• Cylinder head temperature gauge -20C - +300C (-4F-+572F)
• Clock (12 - 24hr)
• Maximum revs (depending on setting on number of cylinders and sparks 0 - 5000 to 0 - 25000rpm)
• Maximum temperature
• Adjustable warnings for revs and temperature
• Revs pick up off the HT lead

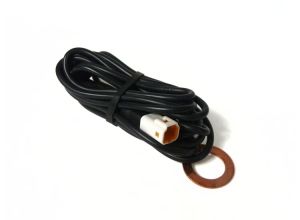

• CHT is from a ring which can be fitted below the spark plug or bolted to the head/cylinder

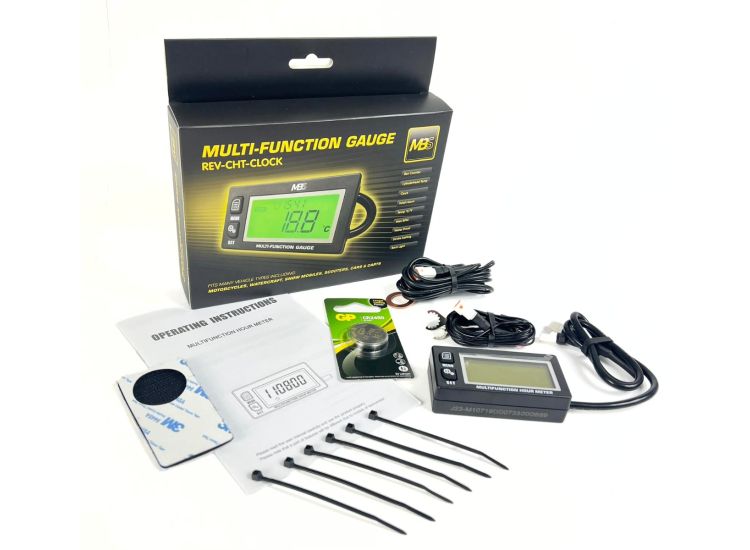

Comes in the kit

• Rev counter unit
• Wires for rev counter
• Wires for CHT
• Wires for DC supply
• Back up Battery for setting the Unit
• Instructions

Requires a 12 volt DC supply from a battery (CR2450 needs fitting for memory) - does not work with a single half wave rectifier.

Guage size 78.5 x 40.5 x 20.5mm.

TIP; grind the head away around the fins for the tempersature sensor to fit easy under the plug or bolt it to you fins or fit it on top of the plug held down with a piece of rubber.
