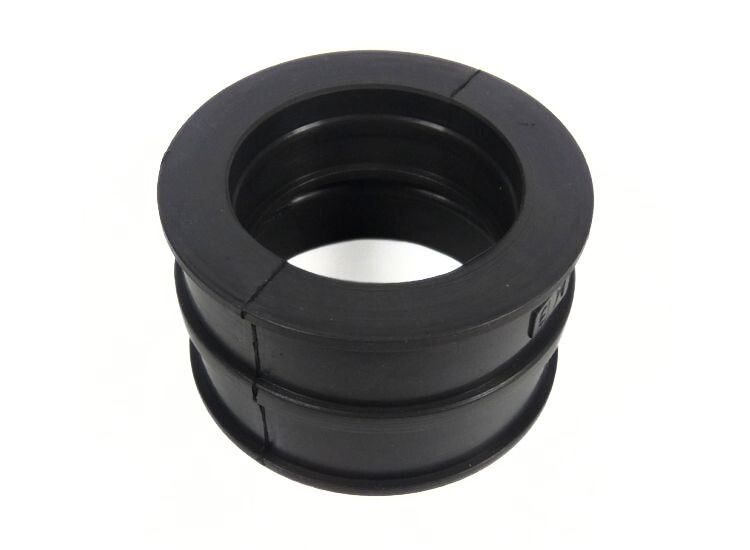

Carb Inlet mounting rubber, stepped type, Mikuni TMX35mm/Amal - Dellorto VHSB, Race-Tour MB

This Mark Broadhurst redesigned, improved and strengthened Viton carb mounting rubber allows the use of a Dellorto 34/36mm VHSB carburettor on a manifold designed for a 34mm Amal or 35mm Mikuni carburettor (or vice versa).

Comes marked with MB.

Fits carb spigot 40mm single lip on one side TMX/Amal and 44mm single lip on the other (this fits single and double lipped carbs).

The rubber measures 34mm in length.

You will need 2 x this clip: MBFJC40*60ZC

TIPS:

• Make sure both inlet manifold and carb are clean and dry before fitting
• Always use the wide type Jubilee clips
• Do not over tighten the clips
• Always carry a spare
• Regularly lightly twist the carb to check for splits
• Support the base of the carb against the cowl to hold the weight of the carb if you can
• If your using a Mikuni TMX carb then you must fit spacer MRB0854 or the rubber will split!
