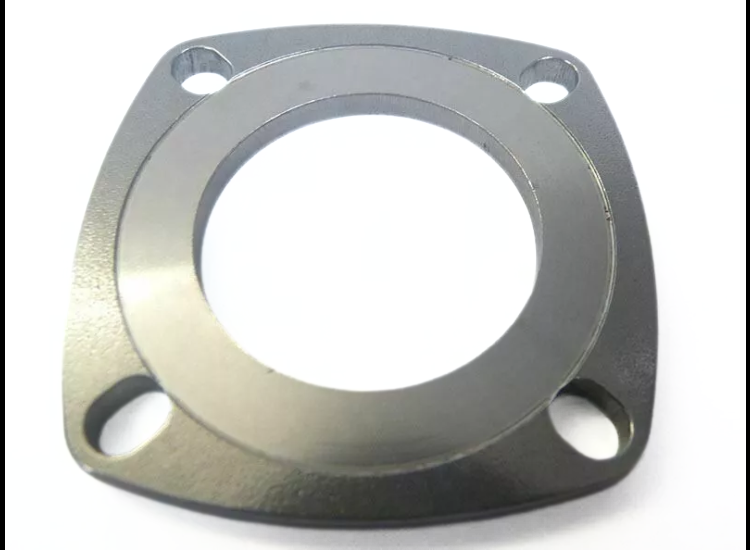

Lambretta Rear hub bearing plate, 0.3mm/flat recess, stainless steel, MB
This is a new MB designed Rear Hub bearing plate.
Comes in stainless steel and is flat on one side and has a 0.3mm recess on the other side.
These new plates are designed to get rid of the older shim and plate - you only fit this plate!
The flat side is perfect for a rear hub bearing that are flush to the casing or sits up to around 0.2mm.
The 0.3mm recess side is ideal for bearings that sits up out of the casing to about 0.5mm.
This design locates over the bearing making sure when it's tightened down the bearing stays in place.
This design has the 4 holes elongated to fit over old engines with bent out studs.
Top tip - use 6mm nyloc nuts and dont over tighten the plate, so the studs bend.
Top tip - ideally once tighten up there should be a gap of 0.1 - 0.2mm between the plate and casing.
