Carb Inlet mounting rubber, Dellorto VHSA, Mikuni 35mm TMX, 28-34mm Amal, Race-Tour MB

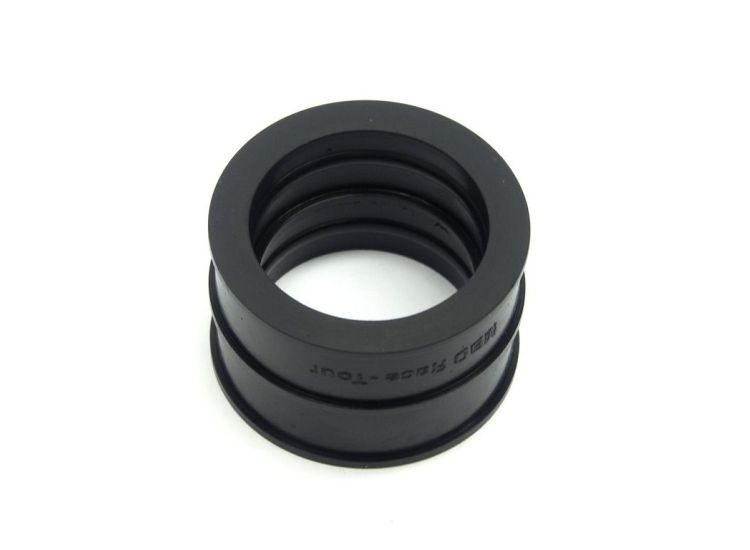

This Mark Broadhurst redesigned, improved and strengthened Viton carb mounting rubber suits all Mikuni 32-35mm, Dellorto 30 - 32mm VHSA and Amal 28-34mm carbs.

Comes with MB marked on it.

This suits manifolds with a spigot outside diameter of 40mm and comes with 2 lips both side.

The rubber measures 32mm in length.

You will need 2 of this size clip: MBFJC32*50ZC

TIPS:

• Make sure both inlet manifold and carb are clean and dry before fitting
• Always use the wide type Jubilee clips
• Do not over tighten the clips
• Always carry a spare
• Regularly lightly twist the carb to check for splits
• Support the base of the carb against the cowl to hold the weight of the carb
• If using a Mikuni TMX carb always use the spacer ring in the rubber on the carb side to stop rubbers breaking MRB0854
