Lambretta carburettor kit, Large block, 30mm PHBH with tea strainer filter and flange type inlet manifold, MB

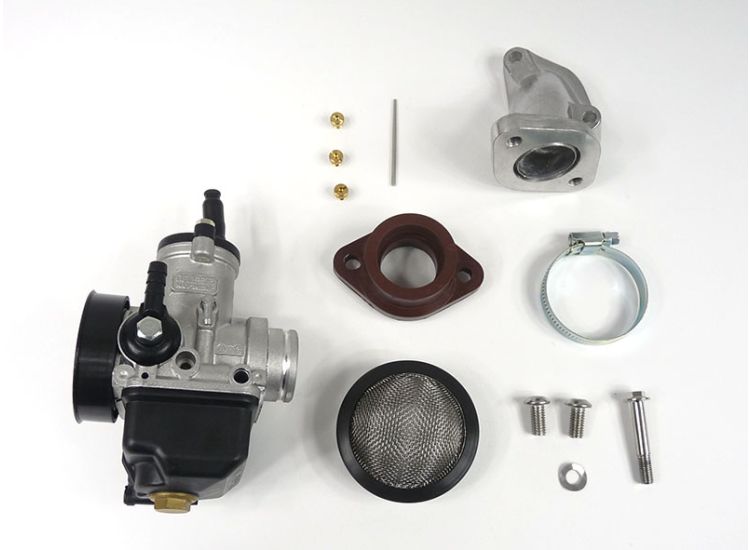

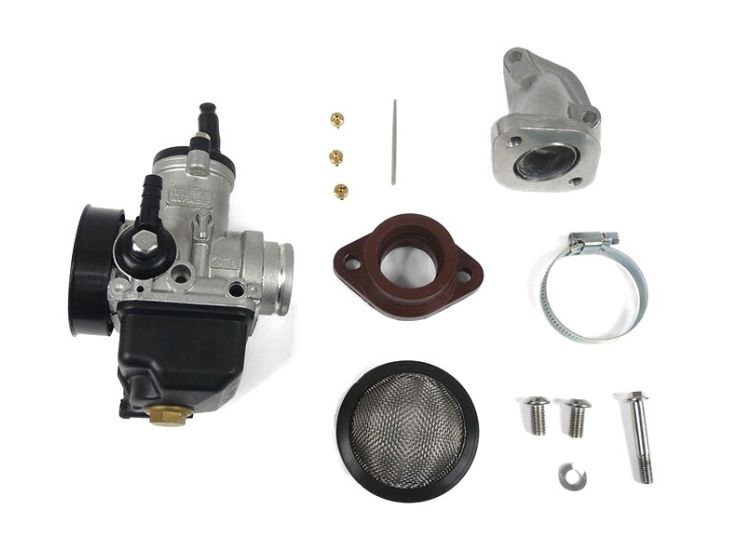

A complete 30mm Dellorto PHBH carburettor kit.

This suits all Series 1, 2 and 3 Lambrettas.

Comes with

• Carb stripped and pre jetted
• Spare jets to fine tune the motor
• Cable choke conversion
• MB tea strainer filter (can be used with an air filter box as well, air box will need drilling to let air in)
• MB Gasket
• MB Flange type Inlet manifold and special bolt
• MB Flange Viton carb rubber
• Carb rubber clip
• Large float valve

Jets supplied;

• 55 Idle Jet fitted (spare 50)
• 130 Main Jet fitted (spare 128, 125, 122)
• AV 264 Atomiser fitted (spare AV266)
• X13 Needle fitted (spare X7, X7/13, X13/2, X2)

Suits all 200/205/210/220/225/230/240 cast type cylinders with the carb on the left and all Race-Tour RT 195/200 and 200/205 cylinders.

PLEASE READ THE SETTING UP INSTRUCTIONS AND CARB SETTING UP BEFORE YOU PHONE FOR ADVICE

Click here for Setting up instructions
