Dellorto Carburettor kit, Lambretta Large block, 28mm PHBH with tea strainer filter and flange type inlet manifold, MB

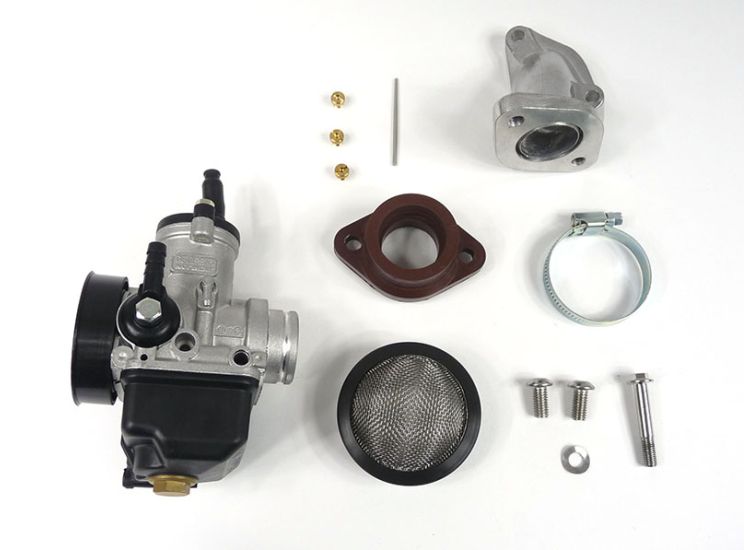

A complete carburettor kit.

This suits all Series 1, 2 and 3 Lambrettas.

Comes with

• Carb stripped and pre jetted
• Spare jets to fine tune the motor
• Cable choke conversion
• MB tea strainer filter (can also fit with an air filter box which will need drilling)
• MB Gasket
• MB Flange type Inlet manifold and special bolt
• MB Flange Viton carb rubber
• Carb rubber clips
• Large float valve

Jets supplied;

• 55 Idle Jet fitted (spare 50)
• 128 Main Jet fitted (spare 125, 120, 115)
• AV 264 Atomiser fitted (spare AV266)
• X13 Needle fitted (spare X7, X7/13, X13/2, X2)

It gives slightly better fuel economy than the 30mm version at the expense of a little bit of top-end speed.

More suited to milder tunes.

Suits all 200/210/215/220/225/230/240 cast type cylinders and all Race-Tour RT 195/200 and 200/205 cylinders.

Tip, use a MB carb support and use fuel resistant sealer on the rubber.

PLEASE READ THE SETTING UP INSTRUCTIONS AND CARB SETTING UP BEFORE YOU PHONE FOR ADVICE

Click here for Setting up instructions
