Dellorto Carburettor kit, Lambretta large block, 28mm PHBH, with tea strainer filter

A complete carburettor kit to suit Series 1/2, cut downs and choppers as the carb is angled slightly forward which makes fitting a filter difficult on Series 3 panels.

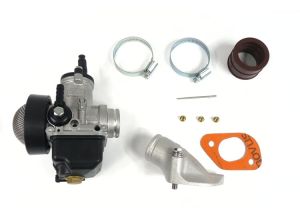

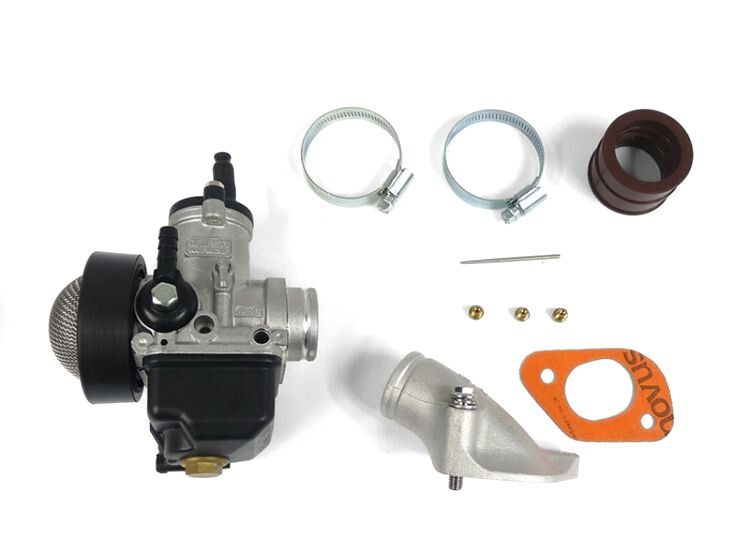

Comes with

• Carb stripped and pre jetted
• Spare jets to fine tune the motor
• Cable choke conversion
• MB tea strainer filter
• MB Gasket
• MB Inlet manifold and special bolt
• MB Viton carb rubber
• Carb rubber clips
• Large float valve

Jets supplied;

• 55 Idle Jet fitted (spare 50)
• 128 Main Jet fitted (spare 125, 120, 115)
• AV 264 Atomiser fitted (spare AV266)
• X13 Needle fitted (spare X7, X7/13, X13/2, X2)

It gives slightly better fuel economy than the 30mm version at the expense of a little bit of top-end speed.

More suited to milder tunes.

Suits all 200/205/210/215/220/225/230/240 cast type cylinders with the carb on the left and all Race-Tour RT 195/200 and 200/205 cylinders.

PLEASE READ THE SETTING UP INSTRUCTIONS AND CARB SETTING UP BEFORE YOU PHONE FOR ADVICE

Click here for Setting up instructions
